VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

  • 1
  • 2
  • 3

Brand Name : PANASONIC

Model Number : VL2330 3.0V

Certification : CE,ROHS, UL

Place of Origin : China

MOQ : 100 PCS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1, 000, 000PCS

Delivery Time : 15 days

Packaging Details : white / gift box/ blister card

Contact Now

VL2330 3.0V Primary Lithium Battery LiMnO2 50mAh Button Cell



Quick Detail:

Rated Capacity: 50mAh
Nominal Voltage: 3.0V
Type: LiMnO2
Operating Teerature: -40 ℃ to 60 ℃
Long shelf life: 5 years

SIZE: 23*3.0MM

Specifications:

Bitmap MAXPOWER INDUSTRIAL CO.LTD
-LiMnO2 CR2330 Lithium battery
Model -LiMnO2 CR2330 3.0V
Nominal Voltage 3.0V
Rated Capacity 50mAh
Working voltage 3.0V at 2.0mA discharge
Discharge cut off voltage 2.0 V
Max Dimension 23.0*3mm (Diameter*Height)
Max continuous discharge current 50mA
Volume 8.0 cubic centimeters
Lithium content Less than 1 gram per cell
Weight Approx 1.2 g
Working teerature -40 ℃ to 60 ℃
Storage teerature -20 ℃ to 40 ℃
Storage humidity ≤ 75%
Storage life

5 years

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

The note regarding the storage:

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

Application:

Widely used for: car key, e-dictionary, digital watch, toys, digital clock, Glucose meter, Electronic thermometer,caculator etc.

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

MORE BUTTON CELL MODELS FOR YOUR CHOICE:

model Nominal voltage Nominal capacity advice use current advice use current(gap) diameter height standard weight
CR927 3V 30mAh 0.1mA 3mA 9.5mm 2.70mm 0.6g
CR1025 3V 30mAh 0.1mA 5mA 10.0mm 2.50mm 0.6g
CR1130 3V 48mAh 0.1mA 5mA 11.6mm 3.00mm 0.6g
CR1212 3V 18mAh 0.1mA 5mA 12.5mm 1.20mm 0.5g
CR1216 3V 25mAh 0.1mA 5mA 12.5mm 1.60mm 0.7g
CR1220 3V 40mAh 0.1mA 5mA 12.5mm 2.00mm 0.85g
CR1225 3V 48mAh 0.1mA 5mA 12.5mm 2.50mm 1.3g
CR1616 3V 50mAh 0.1mA 8mA 16.0mm 1.60mm 1.2g
CR1620 3V 70mAh 0.2mA 8mA 16.0mm 2.00mm 1.2g
CR1625 3V 90mAh 0.2mA 8mA 16.0mm 2.50mm 1.4g

We give OEM service according your appliction(here are some tags models for your referance)

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

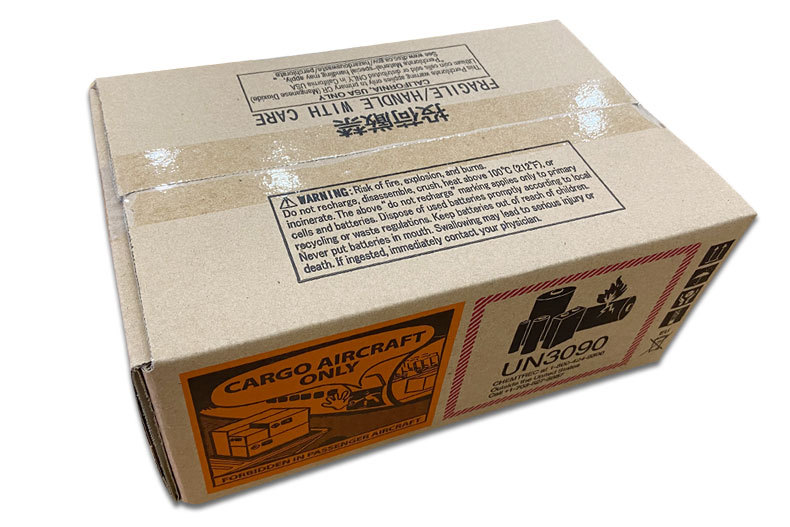

CELL ORIGINAL PACKAGE:

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

VL2330 3.0V Primary Lithium Battery 50mAh for Long-lasting Performance

Coetitive Advantage:

  • Long shelf life up to 5 years
  • Do OEM for world famous brand
  • The top manufacturer in China with 20 years experience
  • High cost/price performance
  • Excellent post-sales service
