LiFePo4 Battery 3.2V 105Ah High Rate 5C FOR POWER STATION, EV CAR WITH UL CE IEC CB MSDS CERTIFICATION
High discharge rate 5C design with stable performance
Long cycle life design with more than 2 years
50Ah,80Ah 3.2V cell also available
Accept cutomized lifepo4 battery pack with Seiko PCM wire and connectors
MSDS UN38.3 IEC CB certificate can be available for safety delivery
Air delviery sea deliver and door to door courier service by DG cargos are available
LF105 3.2V LIFePo4 Battery Cell Specification:
| NO | Item | Parameter | Remark |
| 1 | Typical capacity | 106.5 Ah@1.0C discharge | discharge current 1C with 2.5V cut-off @ @(25±2)C |
| 2 | Minimum capacity | 105 Ah@1.0C discharge |
| 3 | Nominal capacity | 105 Ah | |
| 4 | Typical voltage | 3.2V | Under 0.5CA cc-discharge |
| 5 | Working voltage | 2.5V~3.65V | N.A. |
| 6 | AC iedance resistance | ≤0.5mΩ | N.A. |
| 7 | SOC of shipment | 30%~40%SOC | N.A. |
| 8 | charge current(CC-CV) | Max Charge current | 1C | The maximum charge current of the battery does not exceed 1C under 0℃～45℃. |
| Cut off voltage | 3.65V |
| 9 | Discharge | max discharge current | 3C | Preference value. |
| Cut off voltage | 2.5V |
| 10 | Charging time | Standard | 2.0h | 0.5C charge (time is reference) |
| Quick-charge | 1.0h | 1C charge (time is reference) |
| 11 | Recommend SOC window | 10%-90% SOC | N.A. |
| 12 | Charging teerature | 0-55 C | Refer to appendix B |
| 13 | Discharging teerature | minus 20-55 C | Battery can work at specified teerature range with capacity loss in tolerance. |
| 14 | Storage teerature | One month | minus 20-45 C | Storage humidity<70% |
| one year | 0-35 C |
| 15 | Weight | 1980+/-50g | N.A. |

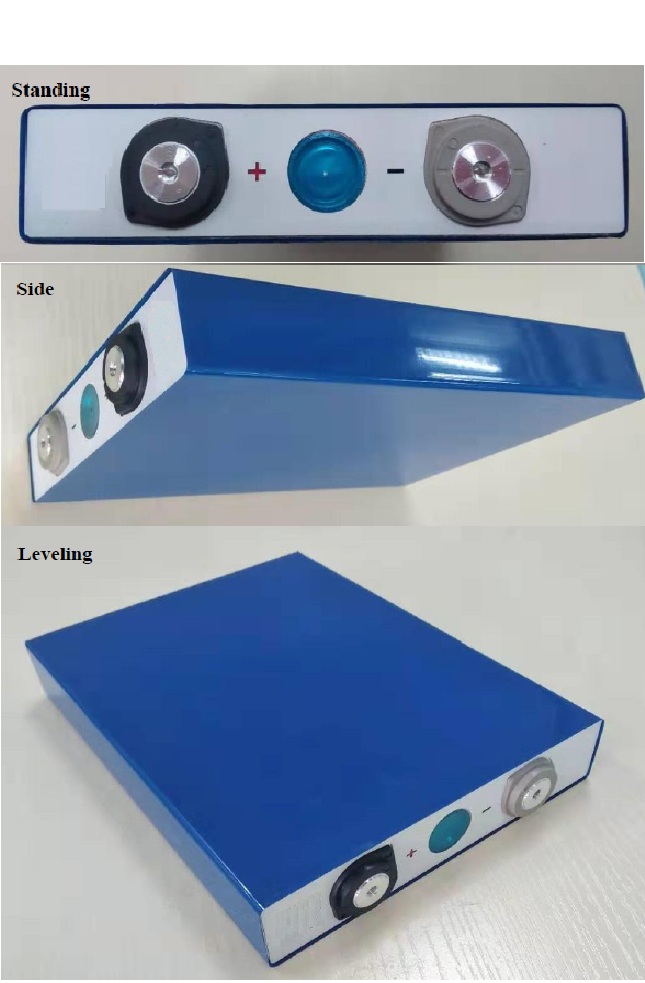

CELL PICS LIKE FOLLOWING:
The rate curve:
The battery pack can be customised like following:
LiFePO4 50Ah Battery Application :
The similar mode we have 80AH,105AH, for more please contact me freely. Wish my 12year experience in battery area can help you out.
